Startseite /Produkte/Gleichstrom-Vibrationsmotor/No 12mm dc 6v N20 gear motor dc reduction spg gear motor

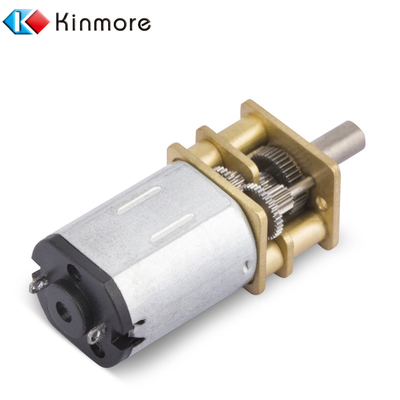

No 12mm dc 6v N20 gear motor dc reduction spg gear motor

5 Pieces
MOQ
No 12mm dc 6v N20 gear motor dc reduction spg gear motor
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: KM-12FN20-100-06120
Usage: Home Appliance, cordless Drill and electronic lock
Type: GEAR MOTOR, Permanent
Torque: 150 g.cm At On load
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: None
Speed(RPM): 120 ± 10% rpm At No load
Continuous Current(A): ≤ 30 mA No load
Efficiency: IE 1
Zertifizierung: RoHS
Standard: ROHS Compliance
Lubrication: Grease Filled
Gearbox: 12mm exposed square shape
Rotation: CCW/CW reversible
Gears: Metal Spur gears
DC Motor type: Precious metal brushed Motor
Weight: ~10g
Certificate: RoHS
Option: Shaft length and D-shape
Grundinformation
Zertifizierung: RoHS, RoHS
Model Number: KM-12FN20-100-06120
Zahlung und Versand AGB
Packaging Details: B3B Corrugated cartons QUANTITY:1000PCS N.W:~9.51KG G.W:~10.49KG C/NO:1/UP MEAS:37*26*29CM
Supply Ability: 90000000 Piece/Pieces per Year samples available
Produkt-Beschreibung

12mm 6v Dc N20 Gear Motor Dc Reduction spg gear motor

Introduction

21 years' motor design and production experience
90 million-piece annual capacity
Auto motors are almost entirely produced on automated lines
Facilities certified to IAFT16949:2016,ISO 9001:2008 and ISO 14001:2004
Advanced equipment from Sodick, Hexagon,Mitutoyo, Magtrol and Votsch
10% sales revenue invested in R&D and automatic equipment every year
Customer PPM: auto motors s 30;general motors s 3,000

Product Description

RatioModel No.VoltageNo Load On Load
Operating
Range		Nominal
Voltage		CurrentSpeedCurrentTorqueSpeed
VVAr/minAkg.cmr/min
1/30KM-12FN20-30-124803.0-12.012.00.034800.110.06340
1/50KM-12FN20-50-033501.5-3.03.00.13500.320.075300
1/63KM-12FN20-63-122543.0-12.012.00.022540.070.063218
1/100KM-12FN20-100-062403.0-6.06.00.062400.140.1225
1/150KM-12FN20-150-121283.0-12.012.00.021280.110.480
1/298KM-12FN20-298-03401.5-3.03.00.04400.200.5929.5
1/380KM-12FN20-380-03351.5-3.03.00.04350.200.5529

Q:1.What kind of motors you can provide?

A: For now, we mainly provide permanent magnet brushed dc motors (including vibration motors, low voltage dc motors and high voltage dc motors) with diameter range in 6~80mm and also Dia10~80mm size gear motors.

Q:2. Can you send me a price list?

A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.

Q:3. What's the lead time for regular order?

A: For orders, the standard lead time is 35-40 days and this time can be shorter or longer based on different model, period and quantity.

Q:4. Is it possible for you to develop new motors if we can provide tooling cost?

A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.

Q:5. Can I get some samples?

A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
