1015 dual coreless mini motor totally enclosed customized shaft 12v motor for railroad models

1000 Pieces
MOQ
$10.23(>=1000 Pieces)
Preis
1015 dual coreless mini motor totally enclosed customized shaft 12v motor for railroad models
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Warranty: other
Model Number: BMD1015DSV12.0S15000T
Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance
Type: Micro Motor
Torque: 16 g.cm Min
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Totally Enclosed
Speed(RPM): 15000 ± 12% Rpm/min
Continuous Current(A): customized
Efficiency: IE 2
Rated Voltage: 12V DC
Operating Voltage: 3.0~12.0V DC
Rotation Direction: CW
Operating Conditions: -10℃~60℃≤60%RH
No Load Current: 20 mA Max
No Load speed: 15000 ± 12% Rpm/min
Stall Current: 300 mA Max
Terminal Resistance: 43.8 ±5%Ω
Insulation Resistance: 10MΩ
Weight: About 5.2g
Zertifizierung: ce, RoHS
Grundinformation
Zertifizierung: ce, RoHS
Model Number: BMD1015DSV12.0S15000T
Zahlung und Versand AGB
Packaging Details: Packaging :Polystyrene / Hard paper box / water proof layer
Supply Ability: 200000 Piece/Pieces per Month
Produkt-Beschreibung

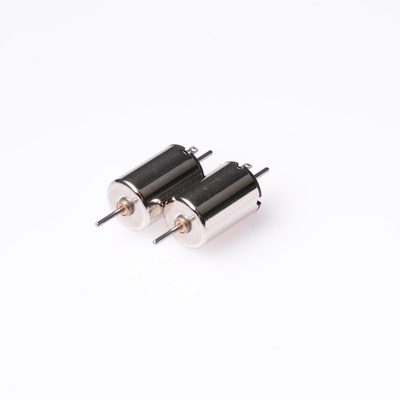

Product Show

customized 1015 dual shaft 12v mini driving coreless motor for railroad models
Motor Paramenters
№
Item
Specifications
№
Item
Specifications
1
Rated Voltage
12V DC
11
Rated Load
As Customized
2
Operating Voltage
3.0~12.0V DC
12
Starting Voltage
0.8V DC
3
Rotation Direction
CW
13
Terminal Resistance
43.8 ±5%Ω
4
Operating Conditions
-10℃～60℃≤60%RH
14
Insulation Resistance
10MΩ
5
No Load Current
20 mA Max
15
Appearance
No any damage
6
No Load speed
15000 ± 12% Rpm/min
16
Weight
About 5.2g
7
Rated Current

17
Clearance between shafts
0.05~0.30mm
8
Rated Speed

18
Torque Constant
73 g.cm/A
9
Stall Current
300 mA Max
19
Speed Constant
1316 Rpm/V
10
Stall Torque
16 g.cm Min
20
Speed/Torque Constant
792 Rpm/g.cm
Company Profile
Yichang Wingfong Industry & Trade Co.,Ltd
Our company was established in 2004, with 15 years experience of manufacturing which is located in Yichang city, Hubei province. Mainly supply Permanent Magnet DC Coreless Motor, Core Motor and Vibration Motor which been widely used for drone, massagers, toothbrushes and so on. Customized also available. At present, our products passed ISO9001, SGS, ROHS certification and so on.Products are exported to Germany, the United States and South Korea. Committed to supplying our high quality products to the whole world.
Product Uses
Main Usage:
1. Toys, RC toys, Electrical Toys, advanced toys, Electric Toys,
2. Game Machine, Game Handle, Game Controller,
3. UAVof Model Airplane or Four-axis Flight,
4. Household Appliances, Video, Audio, Electric Appliances, Vibrating Toothbrush,
electric toothbrushes,
5. Sex Toys, Adult Products, Sex products,
6. Mobile Phone, PHS, BP, walkie-talkie,cordless phones,Cell Phone,
7. Massager, Massage Rod, Eye Massagers, Personal care, Body Massager,
8. Medical Products,Dental Equipment,
9. Beauty Product.
10. PCS (Personal Communication by Satellite), PDA (Personal Digital Assistants)
11. Cars, Cameras, Communication Equipment,Office Machines,Pager
11. Fire Security Systems, Health Product Equipment, Vibrator.
Shipping & Packing
Recommend Products
FAQ
Q: Are these motor's parameter from the above list can be modified ?
A: Yes, motor can be customized. Such as rotation direction, working voltage, lead wire length, lead wire material, rated speed,
torque etc, and motor's shaft dimension can be modified too.

Q: How should I choose a suitable model when I'm not sure about the exact parameters?
A: We can make some suggestions as long as you provide your requirements. Like the usage, working condition, excepted service life
etc.

Q:Is it possible for you to develop new motors?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make
our evaluation to see if we can arrange or not.

Q:Can I get some samples first? How soon can I get the samples?
A: Yes, we can make samples. Sample producing time depends on different types, normally within 25 days.
